2000kg FIBC Baffle Bag Cross Corner Loop U Panel Food Grade

Changzhou hailida packaging co., LTD
Contact Now

2000kg FIBC Baffle Bag Cross Corner Loop U Panel Food Grade

  • 1
  • 2

Brand Name : Hailida

Place of Origin : China

MOQ : 100pcs

Price : USD2.65/PCS

Payment Terms : T/T

Delivery Time : 25-30 DAYS

Packaging Details : PALLET

Name : Food Grade FIBC Baffle Liners Bag Plastic with spout for FIBC PE Baffled Bags Liner

Loop Option (Lifting) : Cross Corner Loop

Bottom Option (Discharge) : Flat Bottom

Safety Factor:c : 5:1

Loading Weight : 1500kg-3000kg

Product name : heavy duty bulk bag

Material : 100% Virgin Polypropylene

Usage : for coffee stone mining building

Bottom : Flat Bottom

Loop : 4 Cross Corner Loops

Contact Now

Food Grade FIBC Baffle Liners Bag Plastic with spout for FIBC PE Baffled Bags Liner

Specification

Material:100% virgin PP or PE

Dimension:90*90*110cm

Type:U-panel/Tubular

Fabric weight:Laminsted/plainent

Printing :Offset Printing & BOPP printing

Loops: Side seam loops/ cross corner loop

Top:Top skirt

Bottom:Bottom spout/ bottom spout

Load capacity: 500kg-3000kg

Packing detail: under customers' requirements

Description

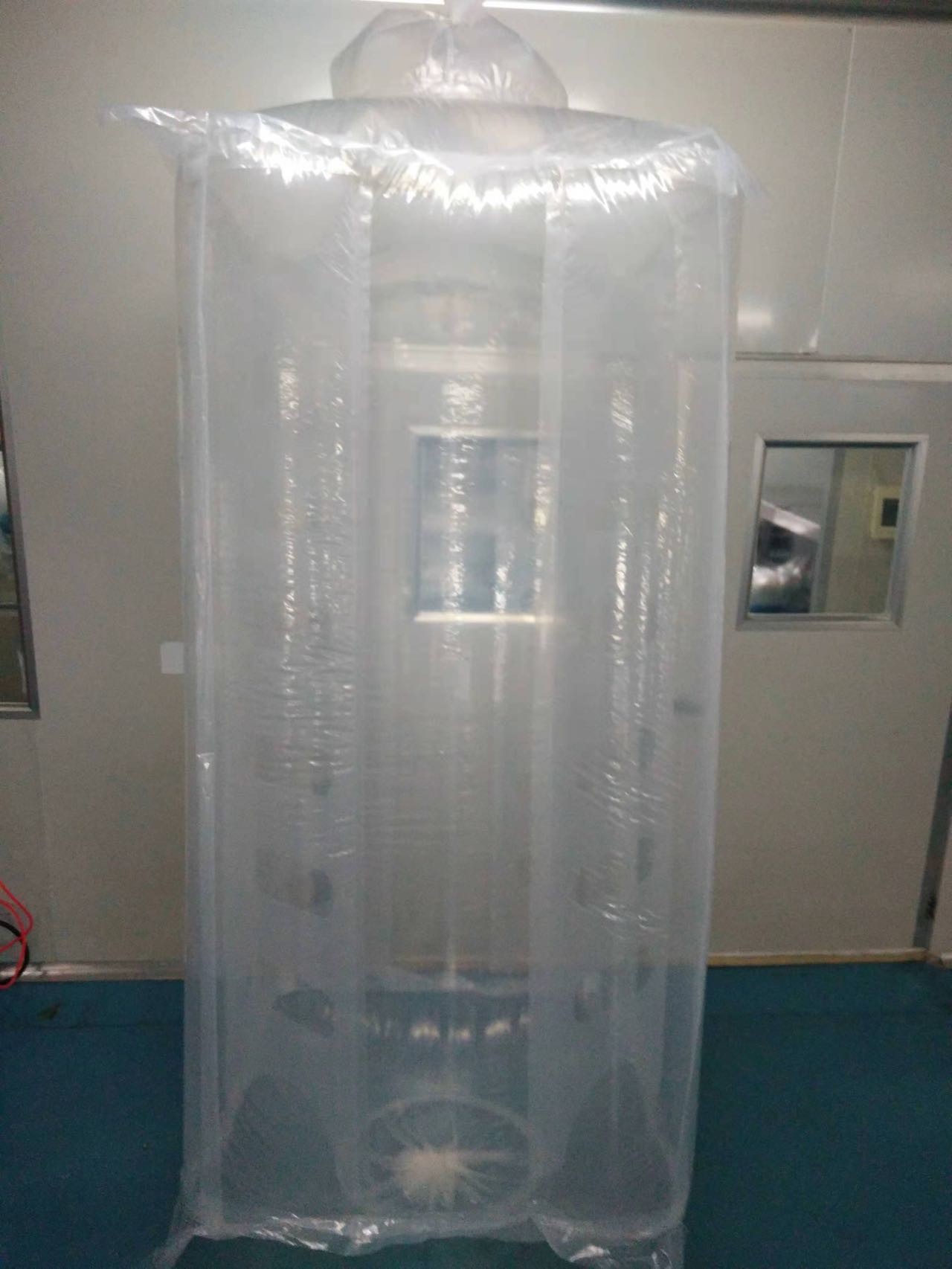

This FIBC baffle liner allows the use of a liner for very fine products or hydroscopic products, to be protected within the liner and still have the benefit of internal baffles which will prevent the bag from bulging.

The baffles, (sometimes called quads) enable more bags to be stored or loaded in restricted spaces such as on a racking system, vehicles or in containers.

Before this style of liner was developed, a three-layer bag was used – an outer bag to do the lifting, a liner and a lightweight coated baffle insert, all sewn together at the top seam. These are expensive bags not just because of the additional raw materials needed, but they are labour intensive and slow to manufacture.

The baffle liner takes a lot less time within the production process which produces a more cost effective, lighter alternative to the older style bags. It also reduces the amount of waste going into the system, which not only reduces the company’s waste obligations but helps the environment.

2000kg FIBC Baffle Bag Cross Corner Loop U Panel Food Grade

2000kg FIBC Baffle Bag Cross Corner Loop U Panel Food Grade

Production Process:

Production Process:1.Purchase of polypropylene raw materials→2.wire drawing→3.Weaving fabric→4.Hot cutting→5.Printing→6.Sewing→7.Folding and inspection→8.Package and Loading container→9.Waterway transportation

2000kg FIBC Baffle Bag Cross Corner Loop U Panel Food Grade

2000kg FIBC Baffle Bag Cross Corner Loop U Panel Food Grade
