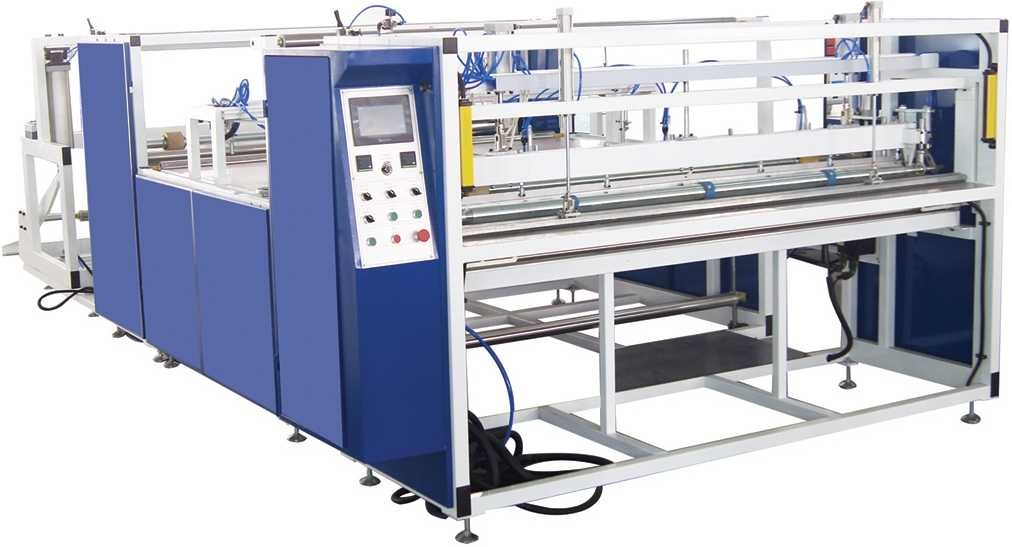

FIBC Jumbo Bag Cutting Machine Automatic Hot Cutting

Brand Name : HLD

Place of Origin : Changzhou,China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 sets per month

Delivery Time : 25 days after payment

Packaging Details : Nude package

Name : FIBC Hot Cutting Machine

Bag Width : 80-2200mm

Bag Length : 500-20000mm

Power Supply : 380V , 50HZ

Product : Jumbo bag

Weight : 2200kg

Max Speed : 12-18M/MIN

Automatic : Full-Automatic

Application : Cut Fabric Roll

Machine size : 5500*2900*1500 mm

Contact Now

FIBC Automatic Hot Cutting Machine Jumbo Bag Making Machine

Description

FIBC Big Bag Full-IAutomatic Cutting Making Machine is applied to the different jumbo bag fabric cutting like:Jumbo bag lay flat/double flat fabric,Jumbo bag single—layer fabric,Jumbo bag bottom cover,top cover,top mouth fabric.

Features

Function and feature
1. The specially designed machine integrates the various main functions in jumbo bag cutting—punching like:Auto jumbo—fabric roll
feeding,Edge process control(EPC),Length—counting,Punching unit for “O” hole,Punching unit for “+” hole,Circle describing,
Linear—knife cutting,Jumbo—fabric feeding.
2 PLC control system.Color man—machine interface,which make date—setting,display,recording more clear and accurate,easier
operation.
3. Hydraulic automatic jumbo—fabric roll feeding&EPC unit,stable,simple and easy in operation.
4. Equipped import servo control system for precise and fast cutting.

Specification

1	Fabric width (mm)	2200 (Max)
2	Cutting length(mm)	300-6000(Max)
3	Cutting precision(mm)	±2
4	Production ability(Pcs/min)	12-18(1000mm)
5	Temperature control (°C)	300(MAX)
6	Total power(kw)	11
7	Power connection (v)	380V 50Hz 3- phase with zero- and earth-wire
8	Compressed air supply	mains pressure approx. 7bar working pressure approx. 6bar air humidity approx. 2.0 m7h
9	Machine size(LWH)mm	550029001500

FIBC Jumbo Bag Cutting Machine Automatic Hot Cutting
